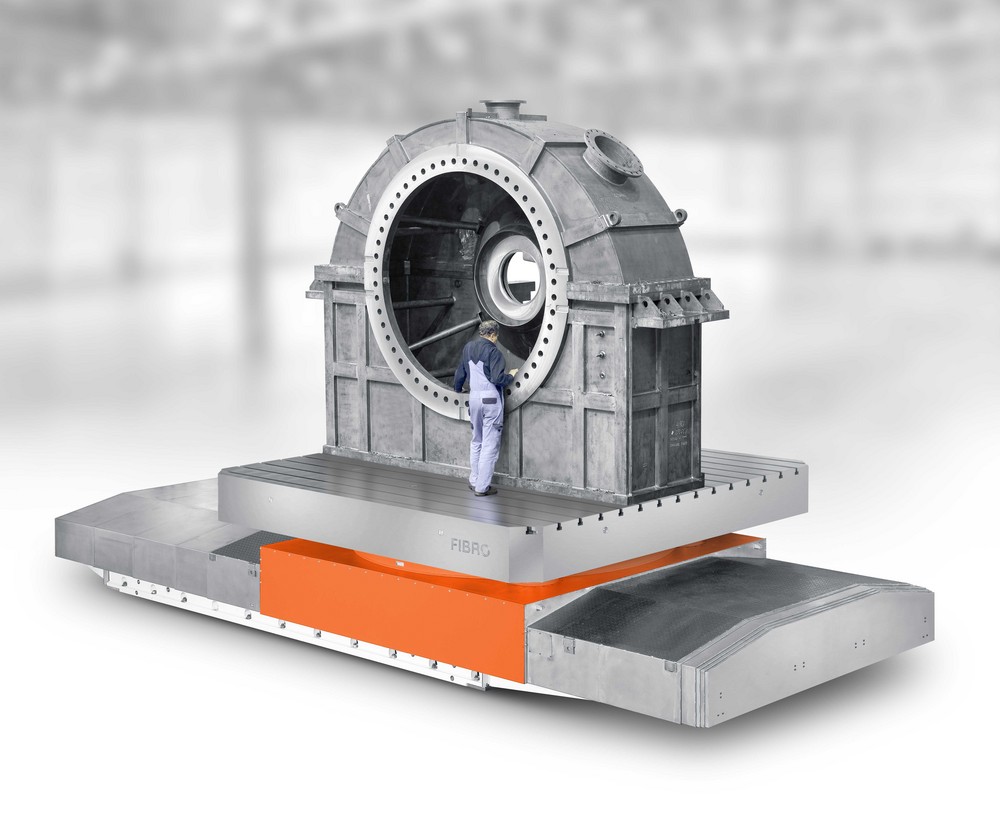

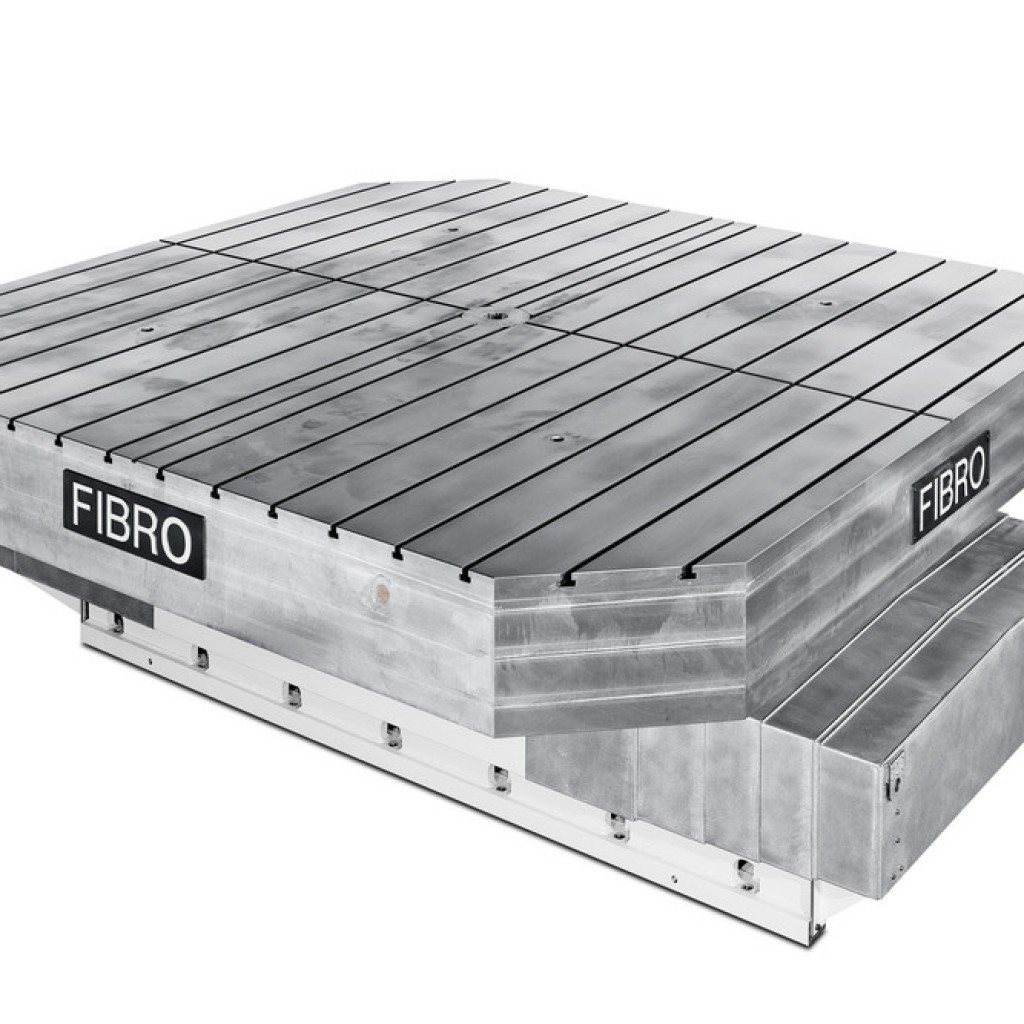

FIBROMAX® heavy-load rotary tables and heavy-load rotary-linear tables

FIBROMAX® NC rotary tables for universal positioning, rotary and multiple-axis machining (simultaneous operation). The modern conception with a rigid mechanical design, combined with high-quality drive and control elements, allows:

  • Transported load over 400 tons
  • flexible positioning
  • high repetitive accuracy
  • high precision in terms of radial and axial concentricity in the micrometer range absorption of radial and axial forces through preloaded and generously dimensioned axial/radial bearing
  • hydraulic table top clamping for even higher tangential forces and offloading the gear
  • outstanding characteristics for rotary milling and simultaneous machining by preloaded bearings and electrically pre-stressed drive (twin drive).
  • operational safety and long service life as a result of careful design
  • low maintenance
  • wide variety of standard models – different types, configuration levels, and variants
  • overall system has been optimised in terms of rigidity
  • optimum power flow from the indexing table via the bearing through the roller circulation shoes and the linear table into the foundation
